A pack read line by line

The other pages introduce one tag at a time. This one goes the other way: a real generator, start to finish, with every line accounted for. Nothing new is introduced — if you have read Lists and Arithmetic, you have already met every tag below.

The subject is a US bank routing number, the nine digits printed at the bottom left of a check. Eight of them are arbitrary. The ninth is a check digit: multiply the first eight by the weights 3, 7, 1, 3, 7, 1, 3, 7 in turn, add up the products, and choose the last digit so the total lands on a multiple of ten.

The whole thing​

<tdc>
    <env count="4" seed="aba-walk" local="en">
        <sequence name="Prefix"><gen type="text" value="01,02,03,04,05,06,07,08,09,10,11,12"/></sequence>
        <sequence name="Tail"><gen type="regex" value="[0-9]{6}"/></sequence>

        <sequence name="Routing">
            <compute>
                <let name="base"><concat><field name="Prefix"/><field name="Tail"/></concat></let>
                <let name="weighted">
                    <reduce>
                        <over><var name="base"/></over>
                        <init><int v="0"/></init>
                        <do>
                            <add>
                                <acc/>
                                <multiply>
                                    <current/>
                                    <at><in><list v="3,7,1,3,7,1,3,7"/></in><index><current_index/></index></at>
                                </multiply>
                            </add>
                        </do>
                    </reduce>
                </let>
                <let name="check">
                    <mod><subtract><int v="10"/><mod><var name="weighted"/><int v="10"/></mod></subtract><int v="10"/></mod>
                </let>
                <result><concat><var name="base"/><var name="check"/></concat></result>
            </compute>
        </sequence>
    </env>
    <block><line><data>${{Routing}}</data></line></block>
</tdc>
./run routing.tdc
107718758
096763296
073800334
052259744

Every one of those four passes the real check: weight the first eight digits by 3, 7, 1, 3, 7, 1, 3, 7, add the ninth, and the sum divides by ten.

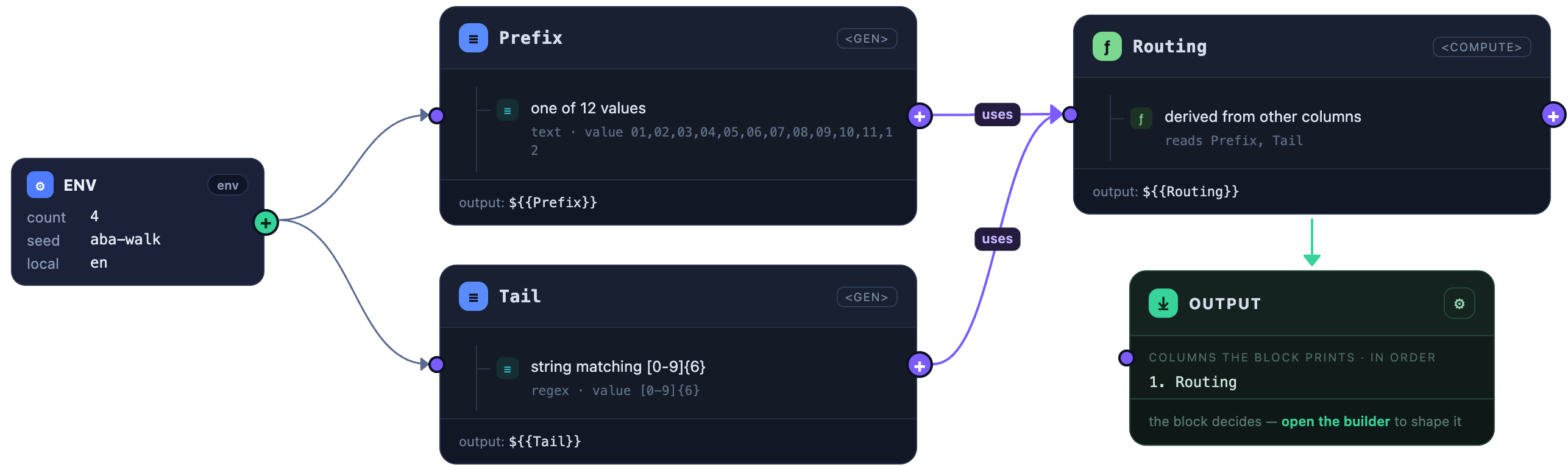

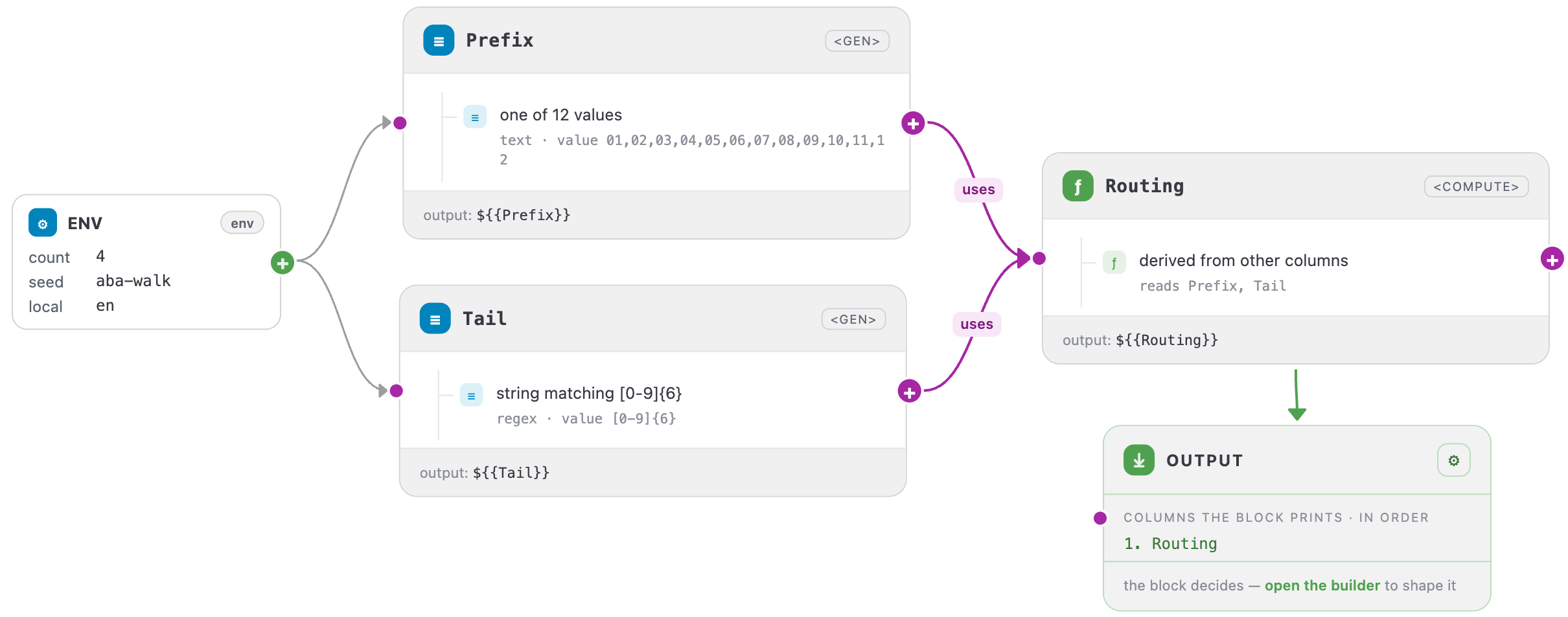

The config as a graph: two drawn columns feed one computed column, and every arrow says who uses whom.

Who draws and who computes​

Two sequences draw, one computes.

Prefix and Tail hold <gen> tags, so they are the only places anything random happens. Routing holds a <compute>, so it invents nothing — it reads the two drawn columns and works out what follows from them. Change the seed and the first two change; the third changes only because its inputs did.

That split is the whole shape of an identifier pack. The randomness is in the parts, the rules are in the compute.

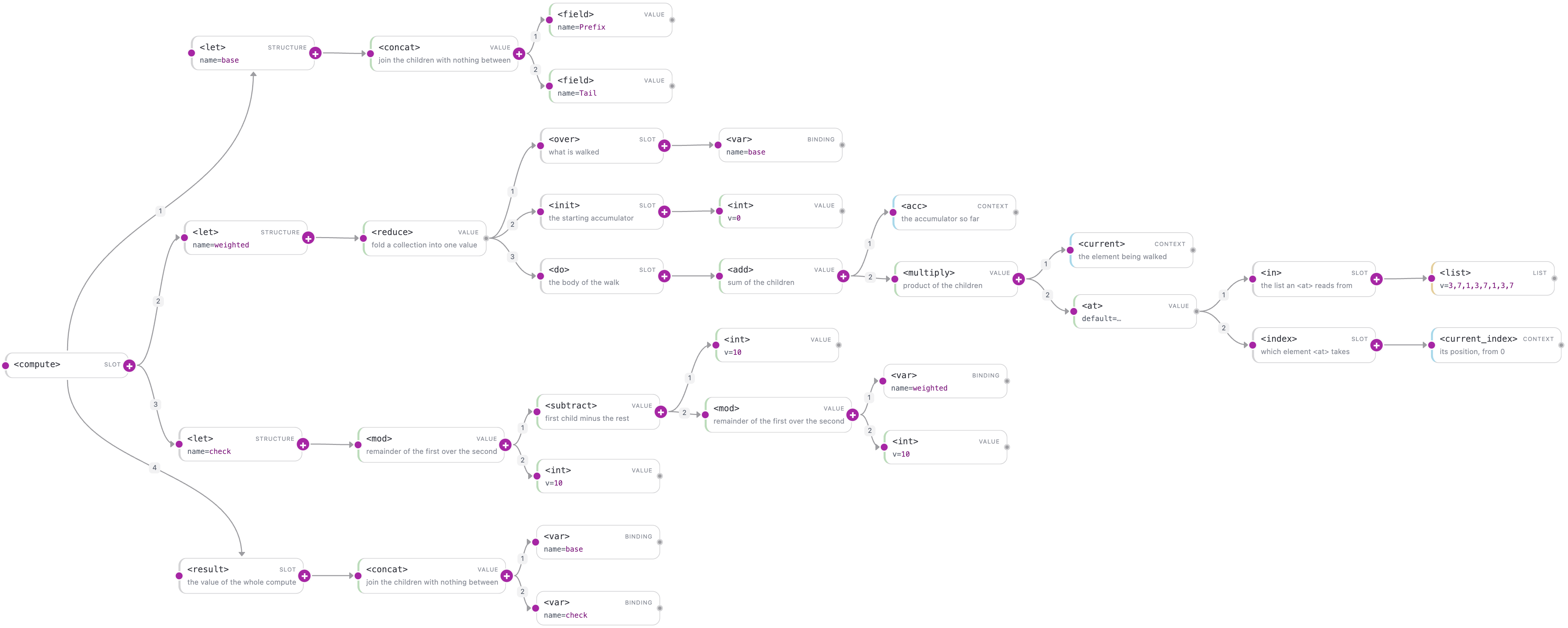

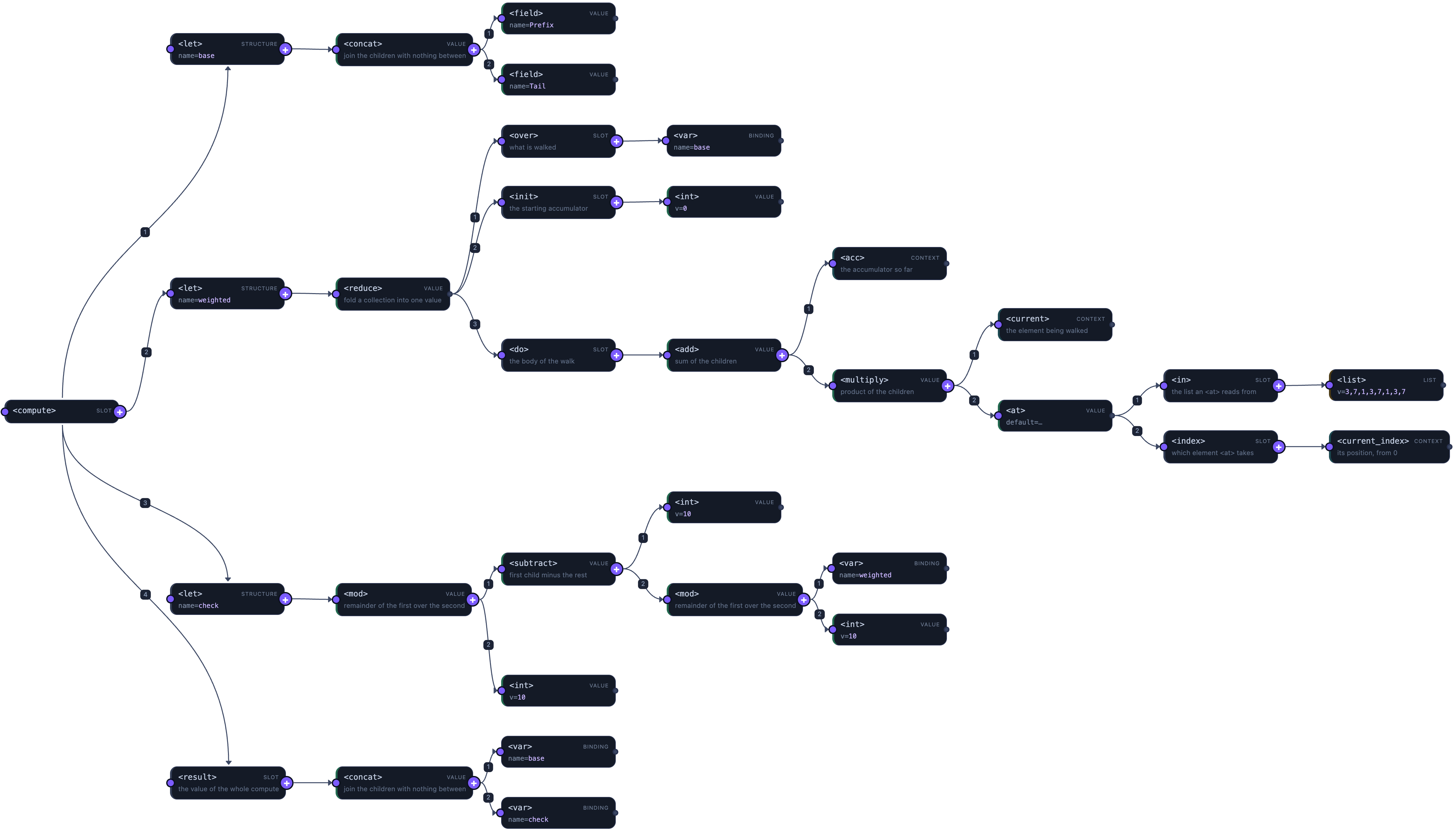

The same compute as a tree, in the Studio canvas. It is wider than this column — click to open it full size and move around it.

Line by line​

The base: eight digits from two columns​

<let name="base"><concat><field name="Prefix"/><field name="Tail"/></concat></let>

<field> pulls in a column that already exists; <concat> glues the two strings into one eight-character string; <let> gives that string the name base.

base is now readable as <var name="base"/> for the rest of this <compute> — and only after this line. A name is bound once, read forward, and never rebound.

The weighted sum: a fold with a lookup inside​

<reduce>
    <over><var name="base"/></over>
    <init><int v="0"/></init>
    <do>
        <add>
            <acc/>
            <multiply>
                <current/>
                <at><in><list v="3,7,1,3,7,1,3,7"/></in><index><current_index/></index></at>
            </multiply>
        </add>
    </do>
</reduce>

Three slots, in the roles they always have. <over> is the shelf — base is a string, so it walks one character at a time, eight steps. <init> puts 0 in the jar. <do> runs once per step.

Inside <do>, read outward from the middle:

  1. <current_index/> is the step number, counting from 0.
  2. <at> uses it to pick the matching weight out of the eight-element list. This is a lookup table standing in for eight branches of a conditional.
  3. <multiply> multiplies the digit in hand by that weight.
  4. <add> adds the product to what is already in the jar, <acc/>.

Walking 07718758's first eight digits 0 7 7 1 8 7 5 8 against the weights 3, 7, 1, 3, 7, 1, 3, 7:

Step<current/>weightproductjar after
10300
2774949
371756
413359
58756115
6717122
75315137
88756193

So weighted is 193 for that record.

The check digit: what is missing to reach a round ten​

<mod><subtract><int v="10"/><mod><var name="weighted"/><int v="10"/></mod></subtract><int v="10"/></mod>

Read it inside out. 193 mod 10 is 3 — how far past a multiple of ten the sum already is. 10 - 3 is 7 — how much more it needs. The outer <mod> handles the one case where that arithmetic misbehaves: when the sum already ends in 0, 10 - 0 is 10, and a check digit has to be a single digit, so 10 mod 10 brings it back to 0.

That outer <mod> is the kind of line that looks redundant until the one record in ten that needs it.

The answer​

<result><concat><var name="base"/><var name="check"/></concat></result>

Eight digits and the ninth, joined. <result> is where a <compute> ends; there is exactly one, and its value is what ${{Routing}} prints.

What to copy from this​

The shape transfers to any check-digit scheme:

  1. Draw the arbitrary part with <gen>, in one or more sequences.
  2. Name it with <let> so the rest of the block can read it.
  3. Fold it with <reduce>, using <at> for per-position weights instead of branches.
  4. Turn the total into a digit with <mod> arithmetic.
  5. <concat> the parts and hand them to <result>.

Luhn, ISBN, IBAN's mod-97 and the national ID schemes in the bundled packs are all this same five-step shape with different weights and a different final step.
