The compute sub-language

<compute> is part of the TDC language, like <switch> or <mix>, but its job is calculation: it derives a value from other values. Inventing data at random is <gen>'s job; <compute> processes values you already have. It lives right in the config, inside a <sequence>, and it's how real-world checksums get built: a credit card's Luhn digit, an ISBN check digit, an IBAN mod-97.

• <gen> produces a value (random, from a range/list/template).
• <compute> derives a value as a pure function of other values.

<compute> reads other sequences with <field name="…"/> — the same names you'd use in ${{…}}.

A processor, not a generator

<compute> has no randomness of its own — none at all. Give it the same inputs and it returns the same answer, every time. A sequence whose only child is a <compute> ignores the run's seed completely: change the seed and the column is byte-identical, because nothing in it was ever drawn.

That is why uniq="true" is not allowed on such a sequence (TDC218). A processor cannot promise uniqueness: it has no pool to draw from without replacement, no columns of its own to rearrange, and no dice to re-roll on a collision — f(x) is f(x). Whether the result repeats is a property of the formula, not of <compute>. Ask for uniqueness on the <gen> sequences it reads, or wrap them in <uniq>.

Every data pack that builds an identifier works this way: the <gen> siblings do the drawing and the <compute> derives the check digit. Of the 188 bundled packs that use <compute>, not one has a <compute> without a <gen> beside it.

A <sequence> therefore holds one or the other, never both: a <compute> next to a <gen> is TDC219. Put the <compute> in its own <sequence> and read the drawn one with <field name="…"/> — exactly the way the packs are laid out.

A real card number from one run: fifteen generated digits, plus the check digit derived from them.

• Athe generated digits
• Bthe derived check digit
• Cthe arithmetic: every second digit is doubled, everything is summed, and the check digit is whatever brings the total to a multiple of ten

The pipe

Read a <compute> as a pipe with three parts.

1. Input. <field name="First"/> pulls in a column that already exists.
2. Work. Operations nest inside one another, innermost first.
3. Output. <result> holds the finished value, one per record.

<result> is required and there is exactly one of it. Everything else in the block is either a <let> binding or the tree inside that <result>.

A login built from two columns: the first letter of one, glued to the other, lowercased.

• Athe columns a <compute> reads with <field> — they were drawn elsewhere
• Bthe operations, each feeding the next; the innermost one runs first
• Cthe finished value, which is what <result> holds

Here is the whole shape at its smallest — a login built from a first name and a last name:

<tdc>
    <env count="3" seed="pipe" local="en">
        <sequence name="First"><gen type="template" value="person.male.firstName"/></sequence>
        <sequence name="Last"><gen type="template" value="person.lastName"/></sequence>
        <sequence name="Login">
            <compute>
                <result>
                    <lower>
                        <concat>
                            <slice from="0" to="1"><field name="First"/></slice>
                            <field name="Last"/>
                        </concat>
                    </lower>
                </result>
            </compute>
        </sequence>
    </env>
    <block><line><data>${{First}} ${{Last}} → ${{Login}}</data></line></block>
</tdc>

./run login.tdc

James Williams → jwilliams
Robert Johnson → rjohnson
John Smith → jsmith

Three operations, evaluated inside out: <slice> takes the first letter, <concat> glues it to the last name, <lower> lowercases the result. Nothing here is drawn — the two names were drawn by their <gen>s, and <compute> only rearranges what they produced.

Slots: children with a job title

Most tags take their children as plain values, in order. Some take named roles instead, and those children are called slots. <at> picks an element out of a list, and it needs two different things — a list and a position — so each gets its own tag:

<tdc>
    <env count="3" seed="slot" local="en">
        <sequence name="Score"><gen type="number" value="0..2"/></sequence>
        <sequence name="Grade">
            <compute>
                <result>
                    <at>
                        <in><list v="100,200,300"/></in>
                        <index><to_number><field name="Score"/></to_number></index>
                    </at>
                </result>
            </compute>
        </sequence>
    </env>
    <block><line><data>${{Score}} → ${{Grade}}</data></line></block>
</tdc>

./run at.tdc

1 → 200
2 → 300
0 → 100

<in> and <index> are slots of <at>. They mean nothing on their own, they never appear anywhere else, and swapping their order changes nothing — the name carries the meaning, not the position. Fourteen of the tags on these pages are slots or loop variables like this, and each one is introduced together with the tag that owns it.

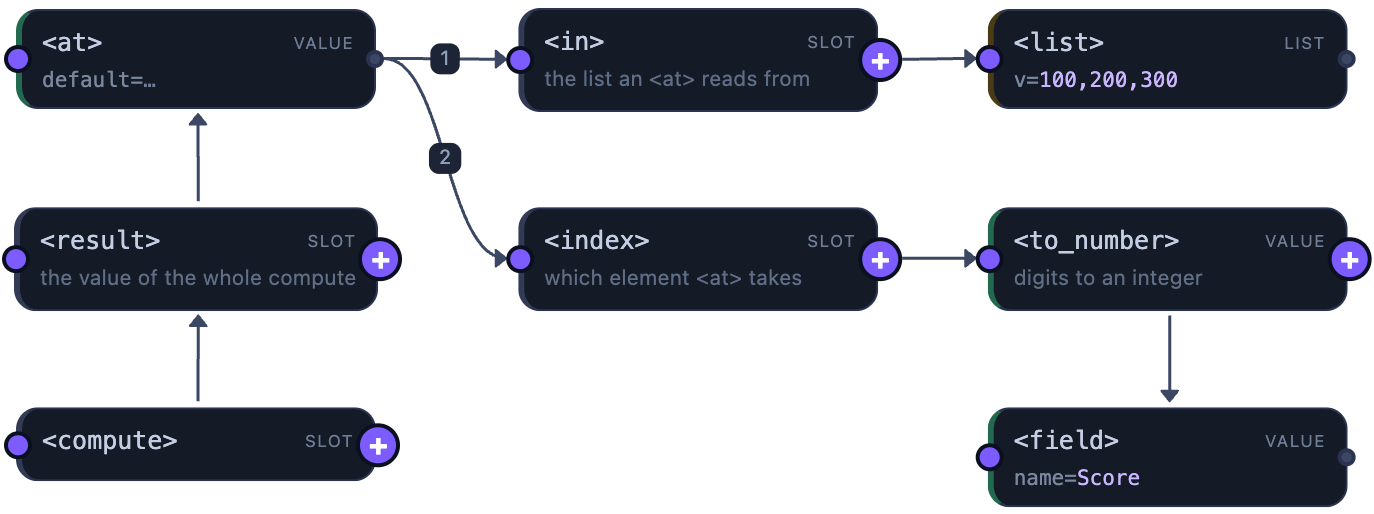

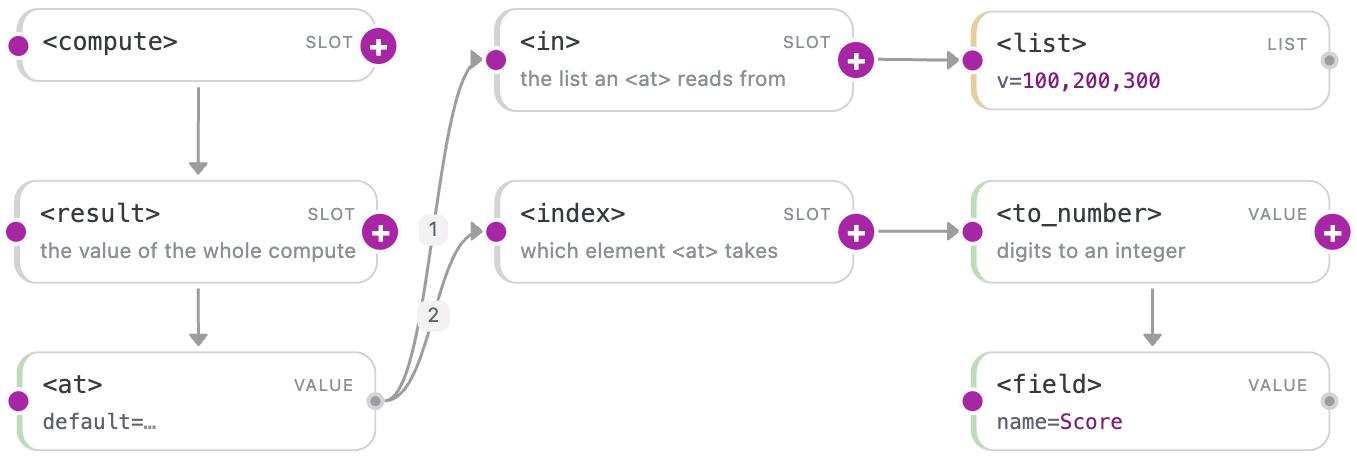

The same lookup on the Studio canvas — the list and the position hang off named ports, not off a first and a second child. Click to open it full size.

A fuller example — a valid card number

A payment-card number is almost random: the last digit is a Luhn check digit computed from the rest. Generate 15 random digits, then let <compute> append the one digit that makes the whole thing valid:

<tdc>
  <env count="100" seed="demo">
    <sequence name="Base">
      <gen type="number" length="15" first_zero="false"/>   <!-- 15 random digits -->
    </sequence>

    <sequence name="Card">
      <compute>
        <let name="sum">
          <reduce>
            <over><field name="Base"/></over>
            <init><int v="0"/></init>
            <do><add><acc/>
              <choose>
                <when>
                  <test><equals><mod><current_index/><int v="2"/></mod><int v="0"/></equals></test>
                  <then><at><in><list v="0,2,4,6,8,1,3,5,7,9"/></in>
                            <index><current/></index></at></then>
                </when>
                <otherwise><current/></otherwise>
              </choose>
            </add></do>
          </reduce>
        </let>
        <let name="check">
          <mod><subtract><int v="10"/><mod><var name="sum"/><int v="10"/></mod></subtract><int v="10"/></mod>
        </let>
        <result><concat><field name="Base"/><var name="check"/></concat></result>
      </compute>
    </sequence>
  </env>
  <block><line><data>${{Card}}</data></line></block>
</tdc>

./run card.tdc

5651468319671434
4592454318080046
6795599553235471
2342763161342247
6190038560588706

Example outputs on this page are illustrative — the exact values depend on the seed and the core version — but every line above is a genuinely Luhn-valid 16-digit number.

Piece by piece: <reduce> folds the 15 digits into a single running sum. Every second digit (an even <current_index/>) gets "doubled" — but Luhn wants the digit sum of the doubled value, so instead of <multiply> the config looks it up in a small table with <at>. A <choose> picks either the doubled value or the plain digit. The second check step turns that sum into the final digit, and <concat> glues it onto the base.

Three value types

Every compute expression evaluates to one of three types.

Type	What it is	Literal
int	a 64-bit integer	<int v="10"/>
str	a string	<str v="AB"/>
list	a list of int/str	<list v="2,4,10"/>

A literal's value goes in the v attribute — in TDC, tags can't hold text between <tag> and </tag>. There are no floats and no booleans.

Familiar names, different behavior

Several tags share a name with something in a programming language and then behave differently. A familiar name is worse than an unfamiliar one here: you do not reread the documentation for a tag you think you already know. Each row below is measured, not inferred.

You write	You may expect	TDC gives
<divide> of 7 by 2	3.5	3 — integer division, the remainder is dropped
<divide> of 1 by 3	0.33	0
<mod> of -7 by 3	-1, as in C, Java and JavaScript	2 — the remainder is never negative
<list v="a,b"/>	a list of two strings	an error: "a" is not an integer
<replace from="[ab]"/>	a regular expression	a literal match, so nothing is replaced
<replace from="a"/> on banana	the first a	bXnXnX — every occurrence
<equals> of 5 and "5"	different types, not equal	equal
<slice from="99"> of abc	an error	an empty string, silently
<pad width="2"> of 12345	12	12345 — width is a minimum, never a cut
<each> used as a string	a string	an error: cannot use a list where a string is expected

Three of these deserve more than a row.

<let> and <var> are not two kinds of variable

They are a declaration and a read. <let name="x"> binds a name; <var name="x"/> reads it back. In most programming languages both let and var declare a variable, which is exactly why the pair misleads here.

Three rules follow, and the engine enforces all three:

Rule	What you get when you break it
A name must be bound before it is read	TDC182: <var name="x"> is not bound by an enclosing <let>
A name is bound once and cannot be rebound	TDC185: <let name="x"> shadows an outer binding of the same name
A binding is visible only inside its own slot	a <let> inside <do> is invisible outside it — TDC182 again

Put plainly: <let> works a value out once and gives it a name, and <var> is how the rest of the block asks for that value again instead of repeating the work. The value never changes after it is named — that is what makes naming it worth anything. It is the same move as arithmetic on paper: let s be the score as a number, written once and used to the end.

<divide> throws the remainder away

This is the one that costs the most, because nothing goes wrong loudly. A percentage computed as <divide> of a part by a whole is 0 for every record, and the column looks plausible until someone checks it. Multiply first and divide last, or keep the value in whole units — cents rather than dollars.

Dividing by zero is refused rather than silently skipped: <divide>: the divisor (second child) must not be zero.

A value from a <field> is a string

<field name="Score"/> hands you a string even when the column holds digits. Arithmetic needs a number, so <to_number> sits on the border between the two. Miss it and the error names the tag that received the wrong type.

The reverse crossing is automatic: a number placed in <concat> becomes its digits.

The tag families

Each family has its own page with worked examples; the full alphabetical catalog is in the Compute functions reference.

Literals & references

The values you start from and the names you give intermediate results.

Tag	What it does
<int v="10"/>	an integer (v is decimal, may carry a leading -)
<str v="AB"/>	a string
<list v="2,4,10"/>	a comma-separated list of ints
<field name="X"/>	the value of sequence X in scope — same as ${{X}}
<var name="X"/>	the value bound by an enclosing <let name="X">
<let name="X">…	names an intermediate result that sibling tags can read
<current/>	the current element (only inside <do>)
<current_index/>	the zero-based position of the current element
<acc/>	the accumulator (only inside <reduce><do>)

Arithmetic

Integer math. <add> sums its children, <subtract> is first-minus-the-rest, <multiply> is the product, <divide> is integer division, and <mod> is an always-non-negative remainder. Alongside them are <to_number> (a digit string → int) and <encode> (a character → a number in some base).

Lists & iteration

<each> maps <do> over a list, <reduce> folds a list down to one value through <acc>, <join> renders a list as a string, <at> pulls one element out by position, and <length> measures a string or a list. The wrappers <over> / <do> / <init> / <in> / <index> mark exactly which child plays which role.

Strings & formatting

<concat> glues parts together; <upper> / <lower> / <capitalize> / <title> change case; and <mask>, <slice>, <replace>, <trim>, <group>, and <pad> reshape a string. You can get the same formatting through <gen> attributes and ${{X|…}} filters.

Conditionals

<choose> takes the first <when> whose <test> is true, and falls back to <otherwise>, which is required. Predicates live only inside <test> and return no value: <equals>, <greater_than>, and <less_than> compare two ints, and <is_digit> asks whether a character is 0–9.

<choose>
  <when><test><greater_than><var name="d"/><int v="9"/></greater_than></test>
        <then><subtract><var name="d"/><int v="9"/></subtract></then></when>
  <otherwise><var name="d"/></otherwise>
</choose>

In packs: parameters and <valid>

The built-in identifier generators are .tdc packs where <compute> sits next to <gen>. Two mechanisms exist to help pack authors.

Parameters

Any attribute on the calling <gen type="template" …> — other than the reserved type / value / local — replaces a same-named local <sequence> in the pack with a constant. The pack author declares the parameter as a sequence with a default, and the caller can pin it:

<gen type="template" value="usa.docs.ssn" area="078"/>

Every number now starts with the fixed area code (area), and the pack's own rules still apply to the rest — the group and serial are drawn as usual.

./run area.tdc

078090293
078050204
078014168

Use it when one preset has to cover many concrete variants — a single SSN pack that any area code can drive, or one phone pack you aim at a specific area code.

Reject-and-retry — <valid>

Sometimes a computed check digit can't be represented in the target format. An ISBN-10 check value of 10 is written as the letter X, so if a field has to stay purely numeric, those rows have to be thrown out. A pack adds one <valid> predicate and the engine regenerates the base until it passes — with a safety cap, so an impossible condition can't loop forever:

<sequence name="check"><compute><result> …check digit… </result></compute></sequence>
<valid><less_than><to_number><field name="check"/></to_number><int v="10"/></less_than></valid>

Across thousands of rows, not one will have a check value of 10 — every emitted ISBN-10 is ten clean digits.

./run isbn.tdc

4188261811
8761685496
2444206142

Use it when a correct value can still be invalid for the domain — an unissued range, a forbidden check digit — and you want the pack to emit nothing but good rows.

Limitations

• No expression strings — every operation is its own tag.
• Integers only — a 64-bit overflow is an error, not a silent wrap; there are no floats or booleans.
• Bounded loops only (<each>, <reduce> over a finite input) — the language always terminates.
• Tag names use _ (like before_block): current_index, to_number, greater_than, less_than, is_digit.
• Tree errors are caught before the run (codes TDC180–TDC187): an unknown tag, an unbound <var>, a <choose> with no <otherwise>, and so on.

See also

• Compute functions reference — the full catalog.
• Conditionals — <choose>, predicates, and <valid> in depth.
• Masks & case — the same formatting via filters and <gen> attributes.
